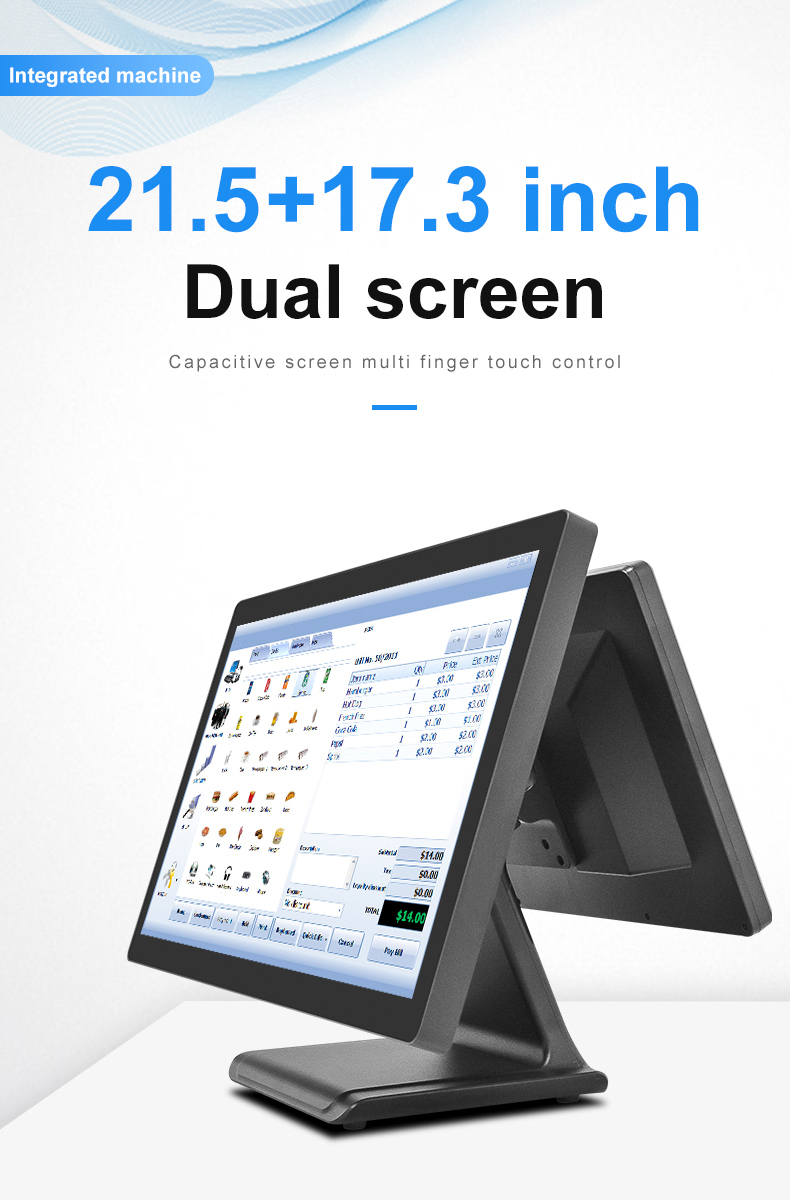

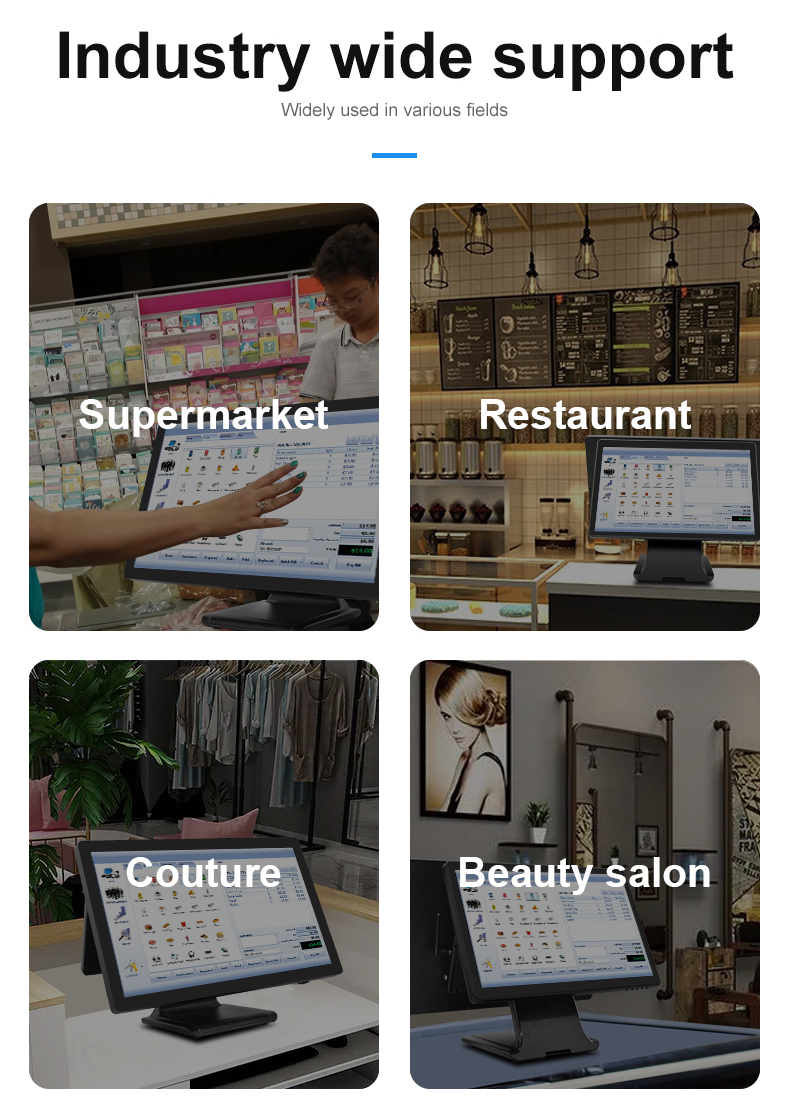

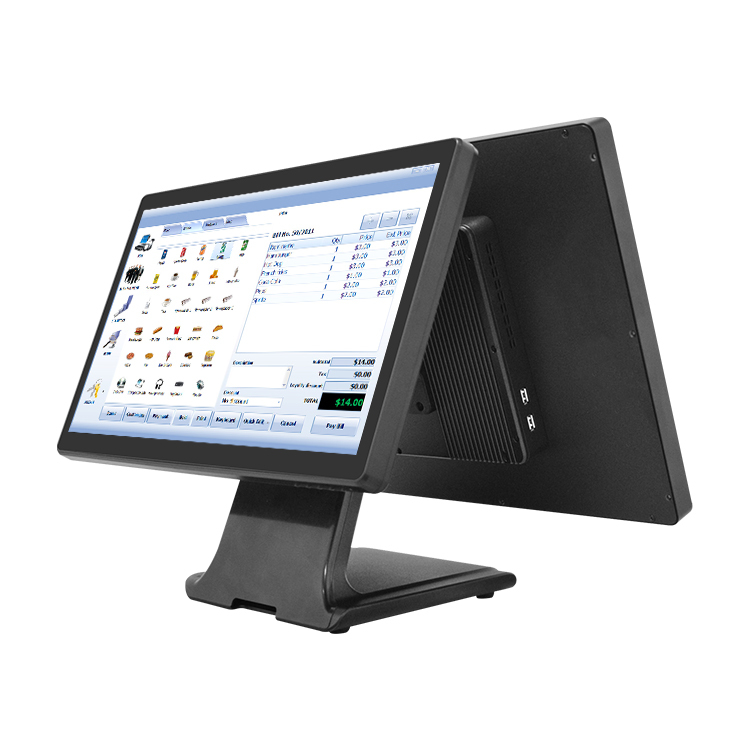

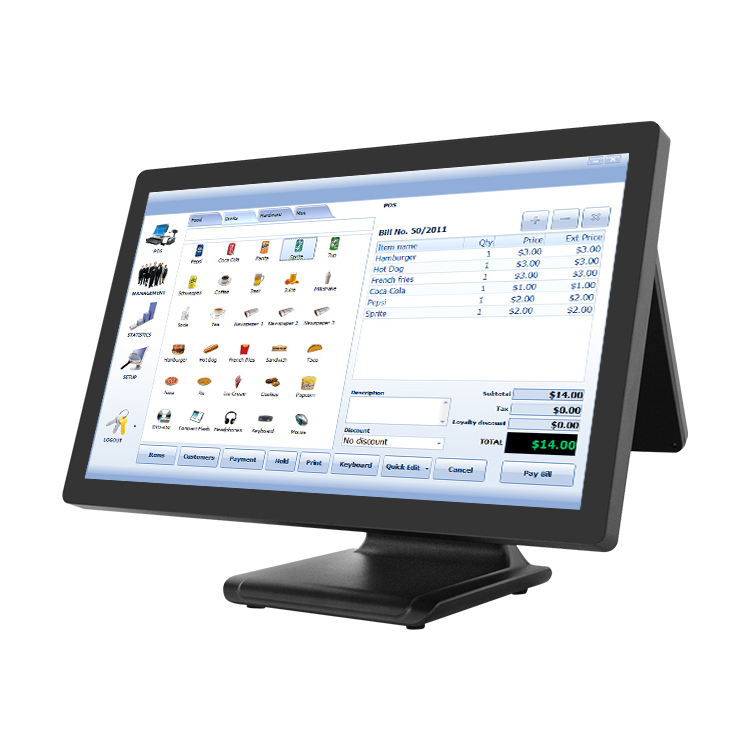

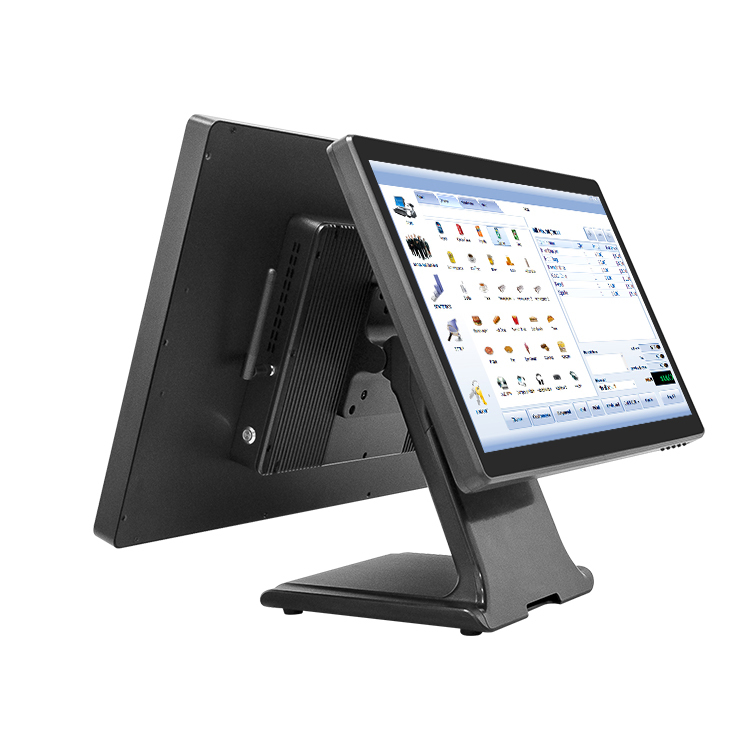

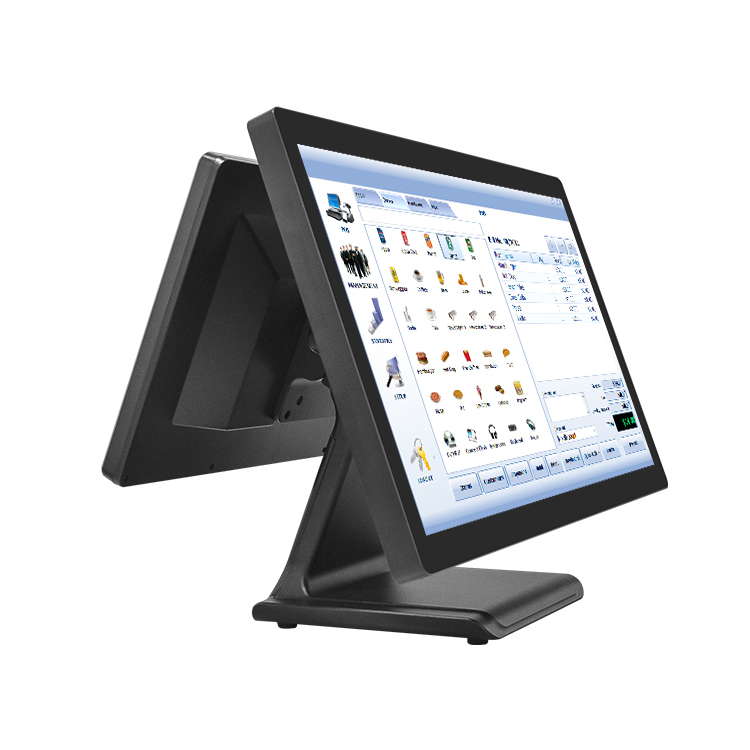

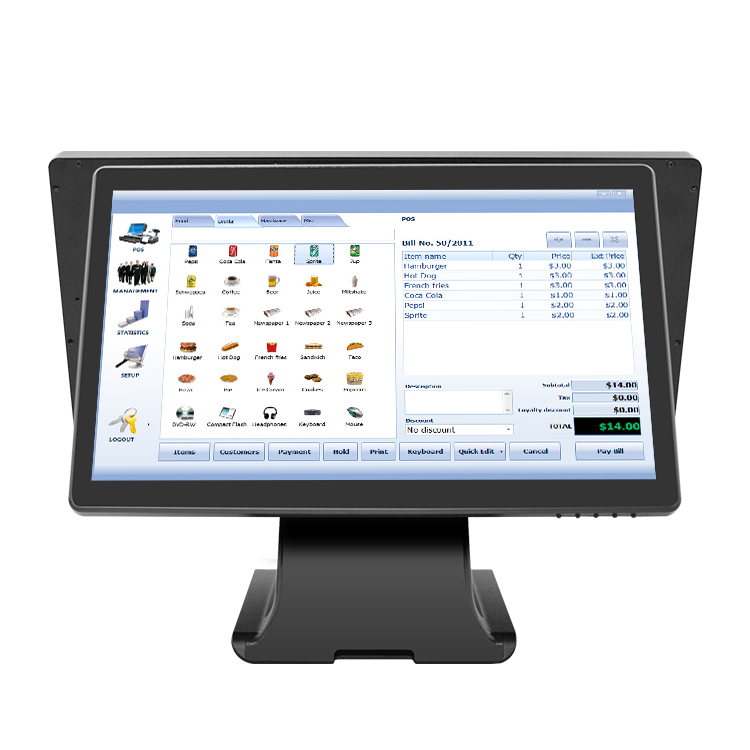

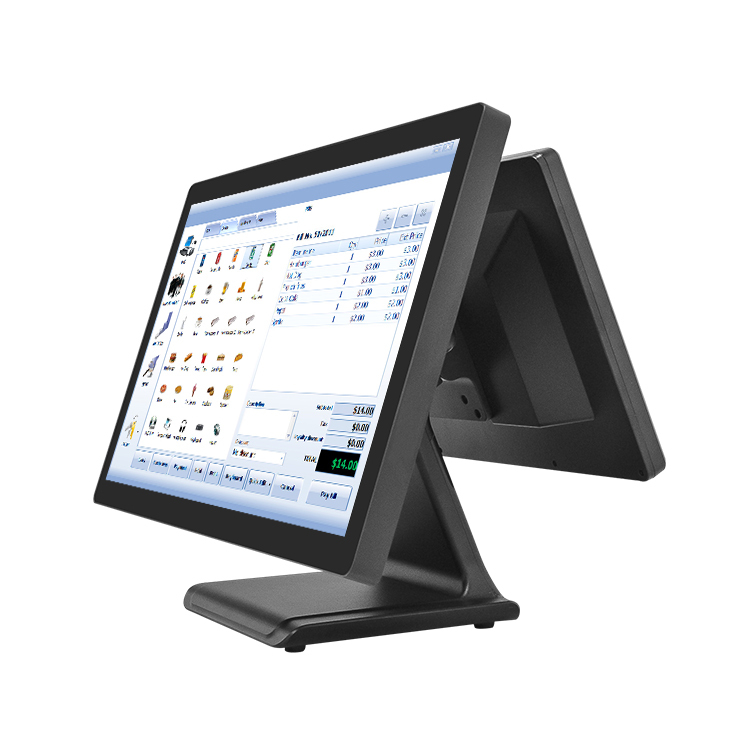

The A2153L7 pairs a 21.5-inch cashier panel with a 17.3-inch customer display, and the mismatch is deliberate. The cashier panel has to hold a full item grid, a search bar, a payment pane and a running total without scrolling; the customer panel only has to show line items, quantity and price legibly from standing height. Fitting a second 21.5-inch panel would double the footprint and the weight on a counter that was never built for it. This layout suits supermarkets, hypermarket lanes, pharmacy counters, fuel-station shops and busy restaurant tills where six or eight lines are on the receipt before the customer has finished unloading the trolley.

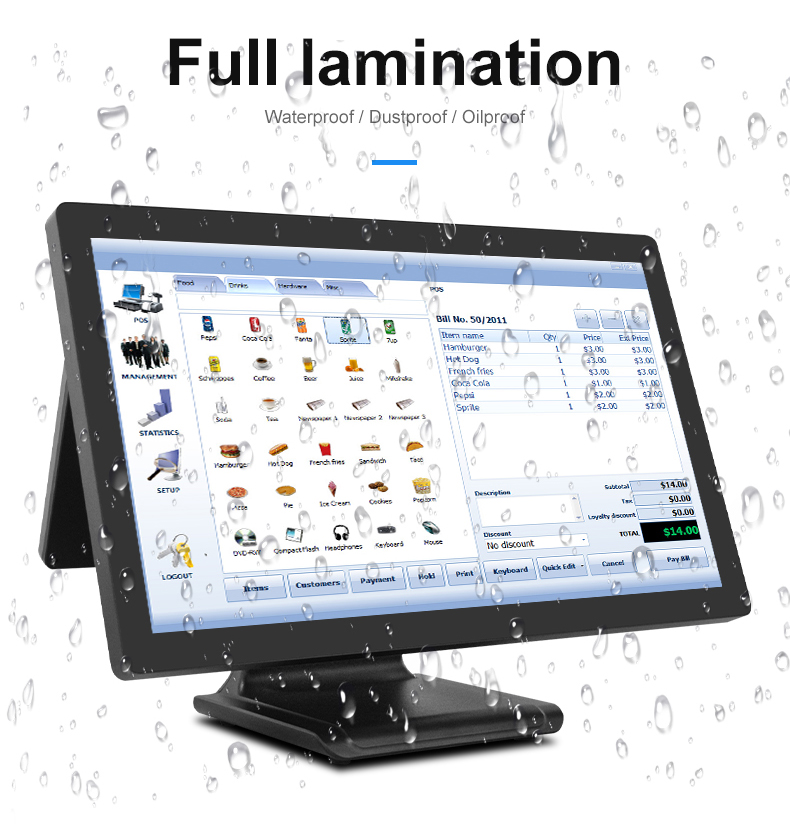

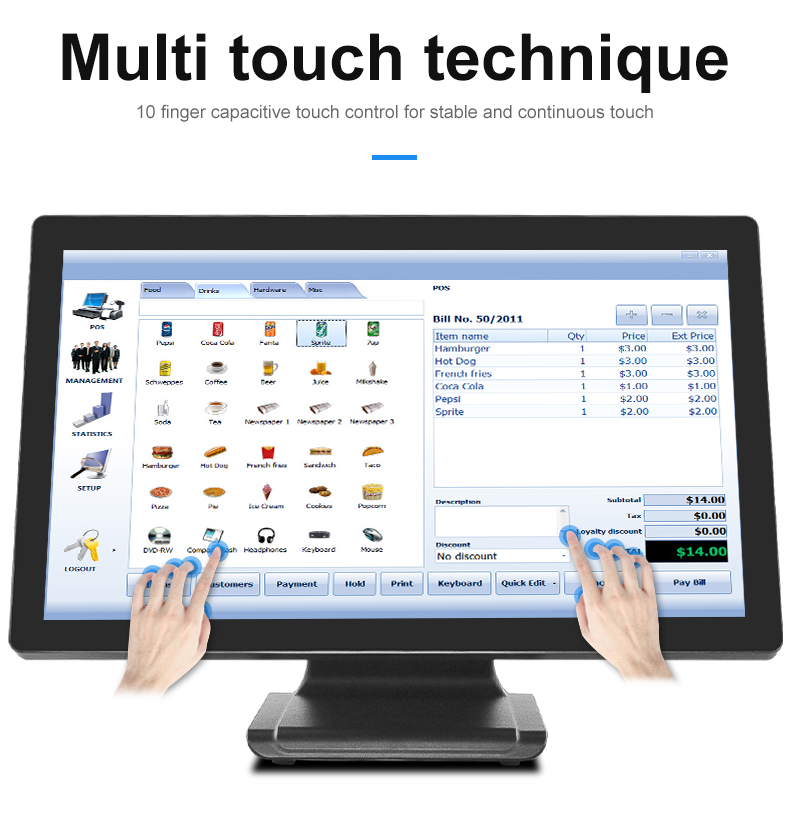

On a 21.5-inch panel the touch surface is large enough that a resistive or infrared layer becomes visible as a slight haze under store lighting. The A2153L7 uses a capacitive layer on the cashier side so the item grid stays crisp and the touch response stays fast across the full diagonal — the trade-off is that capacitive panels cost more per square inch than infrared, and they need a gloved-hand policy at the counter rather than supporting arbitrary conductive objects.

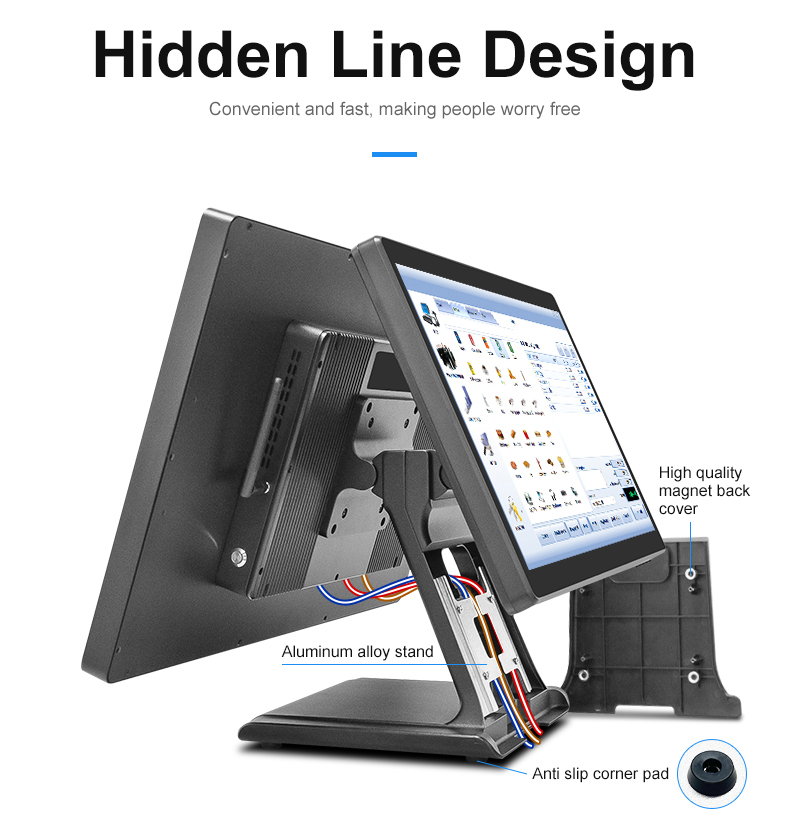

Both panels, the board and the power supply sit in one aluminum housing with one cable to the wall. For a lane that has to be cleaned down at closing, one unit to wipe is meaningfully less work than a terminal, a pole display, a printer and three separate power bricks.
Related reading: Infrared Touch vs Capacitive Touch: Choosing the Right Technology for Large-Screen POS Displays

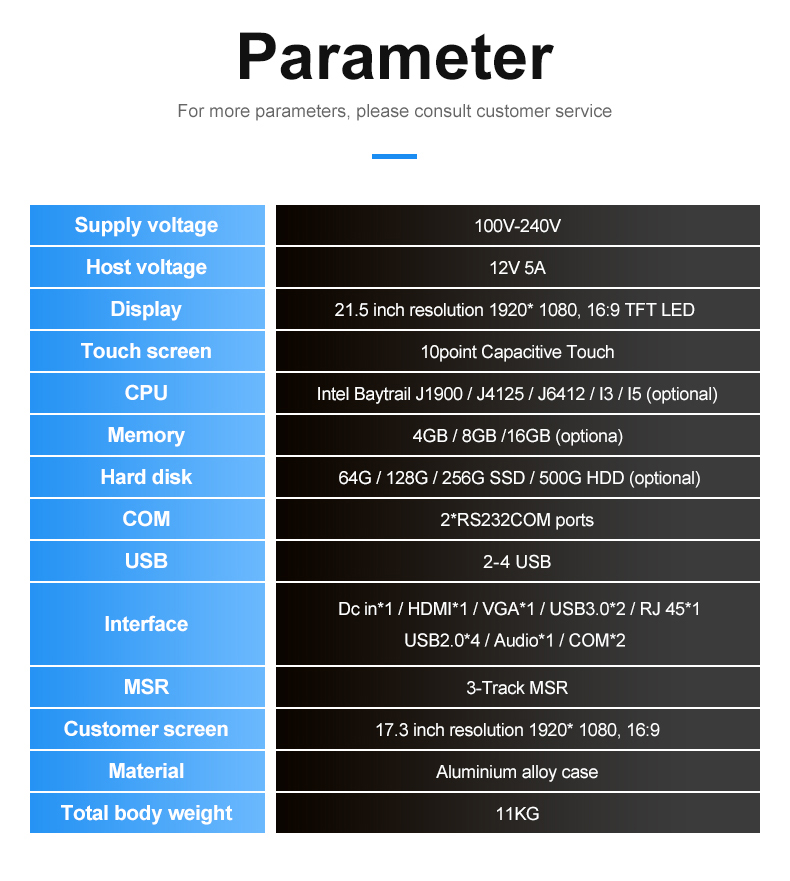

Specifications
| Item | Specification |
|---|---|
| Model | A2153L7 |
| Main Display | 21.5" Capacitive Touch |
| Secondary Display | 17.3" Capacitive Touch |
| Screen Configuration | Dual Screen |
| CPU | Intel Processor N95 / N97 / Core i3 / i5 / i7 (Optional) |
| RAM | DDR3/DDR4, 4G/8G/16G/32G |
| Storage | SSD 128G/256G/512G/1TB |
| OS | Windows 10/11 |
| Certification | CE, FCC, RoHS |
| Warranty | 3 Years |
| MOQ / Lead Time | Flexible / 7-15 Days |
| OEM/ODM | Custom Logo & Hardware Customization Welcome |
